PostgreSQL Destination – Streams

PostgreSQL destinations let you store stream data directly in a relational database, enabling structured queries, joins, and ACID-compliant transactions.

Why use PostgreSQL?

Structured Data Storage: Organize blockchain data in a relational format with defined schemas and relationships
Advanced Querying: Powerful SQL querying capabilities for complex data analysis and reporting
ACID Compliance: Ensures data integrity and consistency through transactions
Performance: Optimized for both read and write operations with support for indexing and materialized views
Extensibility: Rich ecosystem of extensions and tools for enhanced functionality

Configuration

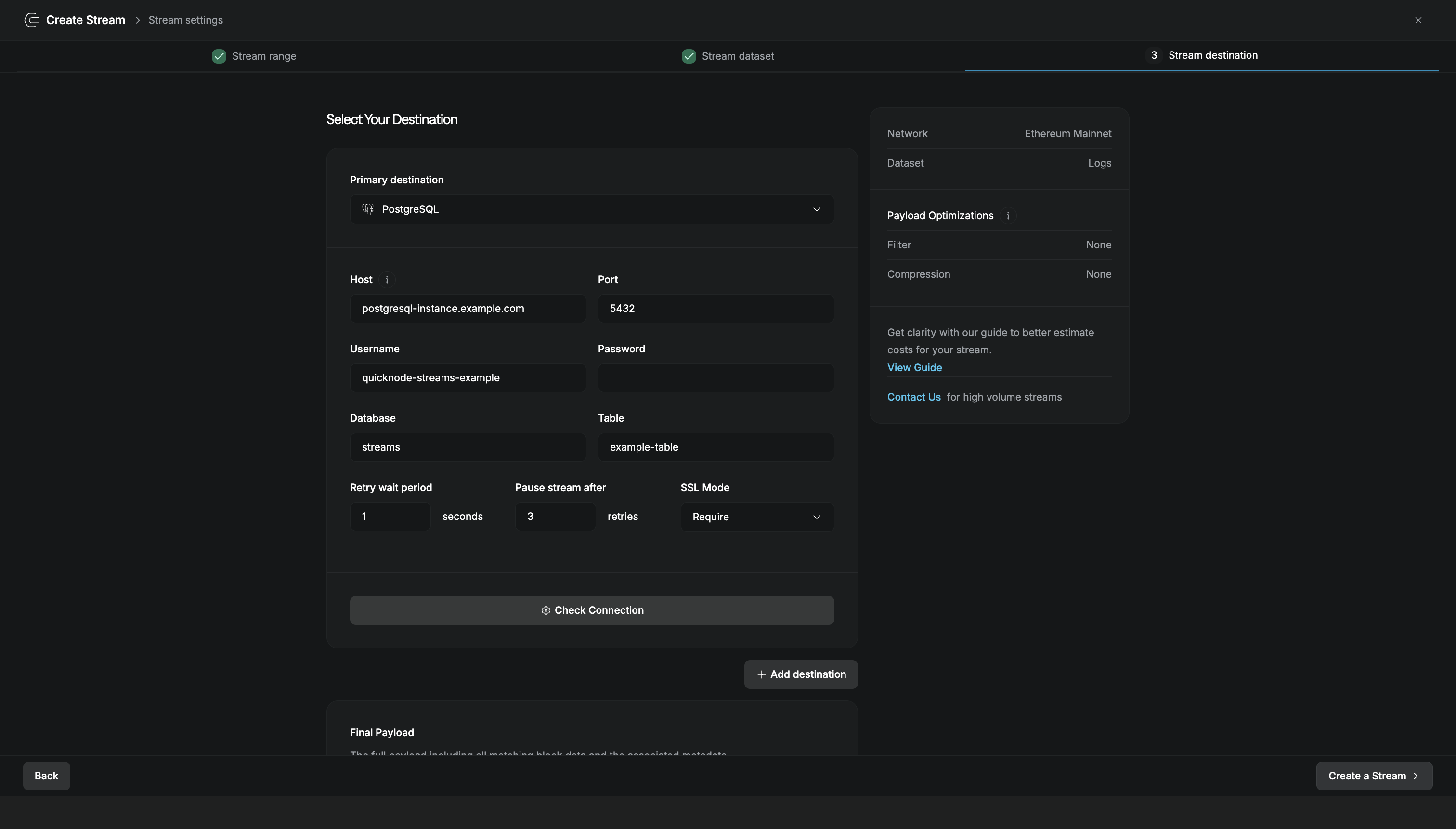

Follow the Quickstart Guide to create a stream. When you reach the destination step, select PostgreSQL and configure the following fields:

Field	Description
Host	PostgreSQL server hostname or IP address
Port	PostgreSQL port (default: 5432)
Database	Name of the database to write to
Schema	PostgreSQL schema name (default: public)
Username	Database user with write permissions
Password	Password for the database user
Table	Name of the table where data will be inserted (must already exist)
Retry wait period	Seconds to wait between retry attempts when writes fail (default: 1)
Pause stream after	Number of failed retries before the stream pauses (default: 3)
Use SSL	Enable SSL/TLS for secure database connections

Click Check Connection to verify your database credentials and table access before creating the stream.

PostgreSQL Data Schema

When setting up PostgreSQL as your destination, you'll need to define a data schema in PostgreSQL. Below is an example of what the PostgreSQL table schema might look like:

CREATE TABLE "blast-mainnet" (
    block_number bigint,
    network character varying,
    stream_id uuid NOT NULL,
    data jsonb NOT NULL,
    CONSTRAINT "blast-mainnet_pkey" PRIMARY KEY (block_number, network)
);

In this schema, each message is inserted as a separate row into the data column. The primary key is structured to accommodate updates in the event of a reorganization (reorg) of the data.

Some considerations:

The primary key includes both block_number and network to ensure that each entry remains unique and updates during reorgs can be efficiently managed
The batch size configuration determines the number of messages inserted at once. Note that the data column does not store arrays of messages; each message is inserted as a standalone row
