15 min read

Sugar V2 / Candy Machine V3 is Deprecated

This guide uses Sugar V2 with Candy Machine V3, which has been deprecated. For new NFT projects, see How to Launch an NFT Collection with Metaplex Core Candy Machine. This guide is for historic educational purposes only.

概述

Are you ready to launch your NFT collection on Solana? Metaplex's Candy Machine CLI, Sugar, is the tool for you to launch in no time. If you have used previous versions of Candy Machine, you will notice that Sugar has a few significant improvements:

• 提升了上传性能
• 简化的用户体验
• 改进的错误处理

您将负责的工作内容

In this guide, you will create a new wallet using Solana CLI, airdrop some SOL, and deploy a Candy Machine on Solana's devnet using Sugar. You'll then deploy your Candy Machine to the web using the Solana dApp Scaffold and Metaplex's new modular JS framework, Umi.

您需要准备的物品

• Node.js installed (version 16.15 or higher)
• 已安装Solana CLI
• 已安装Phantom Wallet或Solflare 扩展程序
• Metaplex Sugar installed (**Latest Version, V2.x+ **) (installation instructions below)
• 一个文本编辑器
• npm or yarn installed (We will use yarn to initialize our project and install the necessary packages. Feel free to use npm instead if that's your preferred package manager.)

设置您的项目

Create a new project directory in your terminal with the following:

mkdir sugar-demo
cd sugar-demo

安装 Sugar

During installation, you will be asked which version you want to use. V1.x is for Candy Machine v2, V2.x is for Candy Machine v3. This guide assumes you are using V2.x. (Candy Machine v3). If you are using an older version, check out our guide here.

Mac 安装

In your terminal, enter:

bash <(curl -sSf https://sugar.metaplex.com/install.sh)

注意：安装完成后，您可能需要重启终端

Windows 安装

1. Download the Windows installer here.
2. 以管理员身份运行安装程序（右键单击-->以管理员身份运行). If you get a warning about an untrusted binary, try clicking 更多信息 然后 不管怎样，还是跑吧. 如果您没有此选项，请按照以下步骤操作：
   • 右键单击可执行文件，然后选择“属性”。
   • If you trust the Metaplex developer team, check the Unblock button as shown in the image below. This will allow you to run this binary on your computer since Microsoft does not trust it automatically.
   • 点击“应用”和“确定”。
   • 请重新运行安装程序

如果一切正常，你应该会看到类似以下的内容：

You should be able to verify your sugar installation by entering sugar --version in your terminal. You should see something like this:

Quicknode % sugar --version
sugar-cli 2.5.0

设置新钱包

One of the cool new features of Sugar is that it will allow you to set your wallet and RPC configs using Solana CLI so that you don't need to re-enter them in each of your Sugar commands.

首先，我们需要使用以下命令创建一个专门用于开发网（devnet）测试的新钱包：

solana-keygen new --no-bip39-passphrase --outfile ./wallet.json

We can confirm that the wallet we just generated is the wallet that the Solana CLI will use by running the following:

Solana 配置 设置 --keypair ./wallet.json

Note: we are using a relative path to our wallet in this example as we will not be changing directories, but you may include a full path if you prefer.

建立与 Quicknode RPC 的连接

Connect to a Solana Cluster with Your Quicknode Endpoint

To build on Solana, you'll need an API endpoint to connect with the network. You're welcome to use public nodes or deploy and manage your own infrastructure; however, if you'd like 8x faster response times, you can leave the heavy lifting to us.

See why over 50% of projects on 索拉纳 choose Quicknode and start your free trial 这里. We're going to use a 索拉纳 Devnet endpoint.

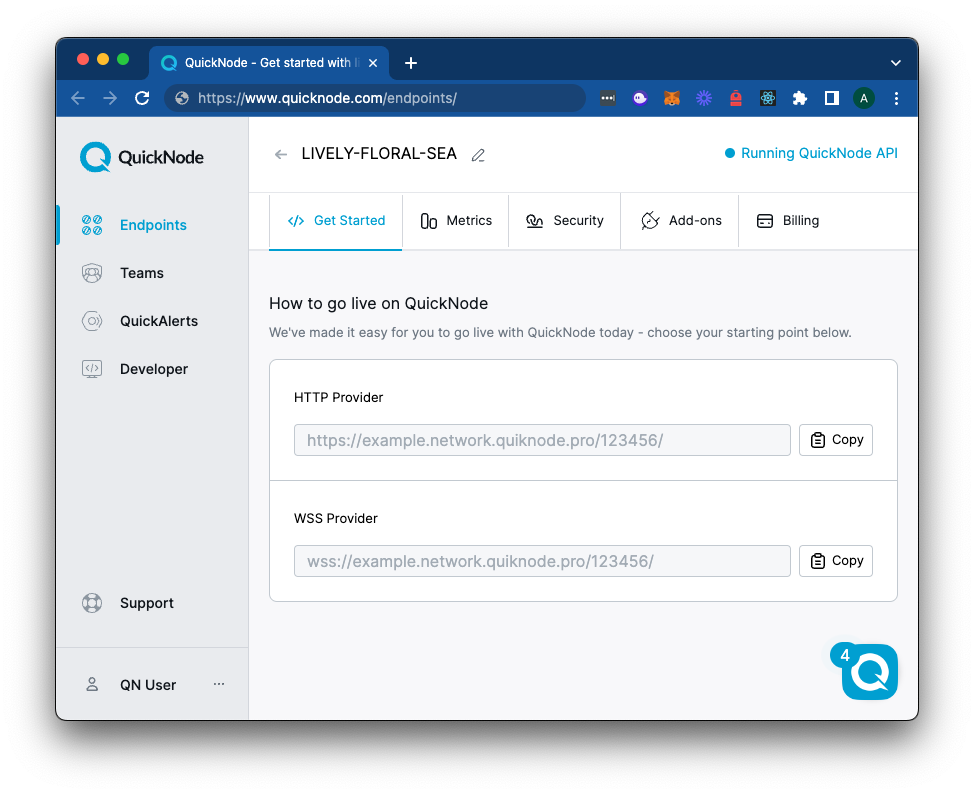

Copy the HTTP Provider link:

With your endpoint on the Solana Devnet setup, you can now run this command, substituting YOUR_QUICKNODE_URL with the HTTP URL you have copied:

Solana 配置 set --url 您的 QuickNode 网址

Now to fund your wallet, you can run the command:

Solana 空投 1

If the command is successful, you should see something like this:

您还可以运行 Solana 余额 在终端中查看，确认那里有 1 SOL。

准备 NFT 资产

If you have used Candy Machine before, this process will be familiar. We must create a .json file corresponding to each digital asset using a simple number format starting with 0 and increasing sequentially, never skipping a number (e.g., 0.json maps to 0.png, then 1.json maps to 1.png). We can also create an optional collection.json and collection.png to enable Sugar to create an on-chain collection automatically.

Metaplex 提供了一组示例资源，我们可以下载并加以利用，以确保一致性。您可以编辑该 JSON 文件，加入任何您想要的值，只要其符合URI JSON 模式即可。

Download the sample set and extract the contents to ./assets/ in your project directory (the default directory that Sugar will look for your files).

配置糖果机

Create a new file, config.json, in your root project folder:

echo > config.json

打开该文件，并将以下配置粘贴进去：

{
    "number": 10,
    "symbol": "NB",
    "sellerFeeBasisPoints": 500,
    "isMutable": true,
    "isSequential": false,
    "ruleSet": null,
    "creators": [
        {
            "address": "YOUR_WALLET_ADDRESS",
            "share": 100
        }
    ],
    "uploadMethod": "bundlr",
    "awsS3Bucket": null,
    "retainAuthority": true,
    "awsConfig": null,
    "nftStorageAuthToken": null,
    "shdwStorageAccount": null,
    "pinataConfig": null,
    "hiddenSettings": null,
    "guards": {
        "default": {
          "solPayment": {
            "value": 0.01,
            "destination": "YOUR_WALLET_ADDRESS"
          },
          "startDate": {
            "date": "2022-10-23T20:00:00Z"
          }
        }
      }
}

Make sure to replace YOUR_WALLET_ADDRESS with the wallet address you created earlier.

注意：您可以在终端中运行solana address命令，以获取刚刚创建的钱包地址。

Now, we should be all set. If you're following along to this point, you should have a directory structure like this:

sugar-demo/
├── wallet.json
├── config.json
└── assets/
  ├── [0-9].png
  ├── [0-9].json
  ├── collection.png
  └── collection.json

Sugar has a built-in validation tool that will let us check for errors before proceeding. In the terminal, run:

sugar 验证

Note: You may see a warning, "missing properties.category". This is fine as the attribute is not included in the Metaplex sample files.

我们开始行动了！干得漂亮。让我们来制作我们的糖果机吧。

Create a Candy Machine

Because we have set our RPC and wallet using Solana CLI and saved our assets 以及 config.json to Sugar's default directories, our commands will be pretty simple!

上传您的素材

In your terminal, enter:

sugar上传

你应该会看到类似以下的内容：

部署糖果机

In your terminal, enter:

sugar deploy简体中文（大陆）

你应该会看到类似以下的内容：

If you get a "Blockhash not found" error, try rerunning the command.

Make sure to store the Candy Machine ID provided in your terminal locally. We will need this later.

验证糖果机

Let's make sure everything has worked as we'd expected. In your terminal, enter:

sugar verify

你应该会看到类似以下的内容：

干得漂亮！

测试你的糖果机

Try minting an NFT using sugar. In your terminal, enter:

糖薄荷

你应该会看到类似以下的内容：

Add Your Candy Guards

By default, when you deploy your Candy Machine, only you can mint NFTs. You must implement candy guards to define the criteria by which others can mint your NFTs (e.g., start time, payment amount, payment token, whitelist tokens, etc.). Since we already defined our guards in our config.json, we can run the following:

sugar guard add

Excellent! Let's create a mint page to share this project with the world!

建立一个铸币网站

For a speedy deployment, we will be using the Solana dApp Scaffold, a handy tool that includes a Next.JS app with Solana Wallet Adapter already integrated.

Clone the dApp Scaffold

From your project directory, in your terminal, enter:

git clone https://github.com/solana-labs/dapp-scaffold ./candy-machine-ui/
cd candy-machine-ui

安装依赖项

Install the included dependencies. In your terminal, enter:

纱线

We will need a few additional metaplex packages to get our minting site up and running. In your terminal, enter:

yarn add @metaplex-foundation/mpl-candy-machine@alpha @metaplex-foundation/mpl-token-metadata@alpha @metaplex-foundation/mpl-toolbox @metaplex-foundation/umi @metaplex-foundation/umi-bundle-defaults @metaplex-foundation/umi-signer-wallet-adapters

Create a .env File

Create a file, .env in the candy-machine-ui folder:

echo > .env

Add the following values in the new .env file (replacing the values with your own):

NEXT_PUBLIC_RPC=<YOUR_QUICKNODE_URL>
NEXT_PUBLIC_CANDY_MACHINE_ID=<YOUR_CANDY_MACHINE_PUBKEY>
NEXT_PUBLIC_TREASURY=<YOUR_WALLET_ADDRESS>

If you don't remember your Candy Machine ID, you should be able to find it in cache.json in the program.candyMachine field.

With all that information plugged in, you can save the file.

Add Mint NFT Button

We must add a button to our minting site to allow users to mint an NFT. First, duplicate the RequestAirdrop component and rename it to CandyMint. In your terminal, copy the file by entering the following:

cp ./src/components/RequestAirdrop.tsx ./src/components/CandyMint.tsx

Open CandyMint.tsx and change the exported component name from RequestAirdrop 到 CandyMint. You should also change the text in the button from <span>Airdrop 1 </span> 到 <span>Mint NFT </span>. Finally, let's update our constant declarations and clear the contents of the onClick function, so we have a clean slate to work with. Your file should look like this:

//...Default Imports (we will replace these later)

export const CandyMint: FC = () => {
    // 👇 Update these constant declarations
    const { connection } = useConnection();
    const wallet = useWallet();
    const { getUserSOLBalance } = useUserSOLBalanceStore();

    // TODO - Create an Umi instance

    // 👇 Update this onClick function
    const onClick = useCallback(async () => {
      if (!publicKey) {
          console.log('error', 'Wallet not connected!');
          notify({ type: 'error', message: 'error', description: 'Wallet not connected!' });
          return;
      }
      // TODO - Add minting logic here
    }, []);

    return (
        <div className="flex flex-row justify-center">
            <div className="relative group items-center">
                <div className="m-1 absolute -inset-0.5 bg-gradient-to-r from-indigo-500 to-fuchsia-500
                    rounded-lg blur opacity-20 group-hover:opacity-100 transition duration-1000 group-hover:duration-200 animate-tilt"></div>
                <button
                    className="px-8 m-2 btn animate-pulse bg-gradient-to-br from-indigo-500 to-fuchsia-500 hover:from-white hover:to-purple-300 text-black"
                    onClick={onClick}
                >
                    <span>Mint NFT </span>
                </button>
            </div>
        </div>
    );
};

We need to add the CandyMint component to our Home View. Open ./sugar-demo/candy-machine-ui/src/views/home/index.tsx and add the following import statement:

// Components
import { RequestAirdrop } from '../../components/RequestAirdrop';
// 👇 Add this line
import { CandyMint } from '../../components/CandyMint';

And add the CandyMint component to the HomeView component:

          <RequestAirdrop />
          {/* 👇 Add this line */}
          <CandyMint />

Great job! You should now have a new button, but before we test it, we need to add mint functionality. Let's do that.

Add Mint Functionality

Return to ./sugar-demo/candy-machine-ui/src/components/CandyMint.tsx and replace the default imports with the following:

import { useConnection, useWallet } from '@solana/wallet-adapter-react';
import { FC, useCallback, useMemo } from 'react';
import { notify } from "../utils/notifications";
import useUserSOLBalanceStore from '../stores/useUserSOLBalanceStore';
import { createUmi } from '@metaplex-foundation/umi-bundle-defaults';
import { generateSigner, transactionBuilder, publicKey, some } from '@metaplex-foundation/umi';
import { fetchCandyMachine, mintV2, mplCandyMachine, safeFetchCandyGuard } from "@metaplex-foundation/mpl-candy-machine";
import { walletAdapterIdentity } from '@metaplex-foundation/umi-signer-wallet-adapters';
import { mplTokenMetadata } from '@metaplex-foundation/mpl-token-metadata';
import { setComputeUnitLimit } from '@metaplex-foundation/mpl-toolbox';
import { clusterApiUrl } from '@solana/web3.js';
import * as bs58 from 'bs58';

// These access the environment variables we defined in the .env file
const quicknodeEndpoint = process.env.NEXT_PUBLIC_RPC || clusterApiUrl('devnet');
const candyMachineAddress = publicKey(process.env.NEXT_PUBLIC_CANDY_MACHINE_ID);
const treasury = publicKey(process.env.NEXT_PUBLIC_TREASURY);

Create a Umi Instance

Let's create a memoized Umi instance using our Quicknode Endpoint and the mplCandyMachine and mplTokenMetadata plugins. We will use this to mint our NFTs. Replace // TODO - Create Umi instance with:

    const umi = useMemo(() =>
        createUmi(quicknodeEndpoint)
            .use(walletAdapterIdentity(wallet))
            .use(mplCandyMachine())
            .use(mplTokenMetadata()),
        [wallet, mplCandyMachine, walletAdapterIdentity, mplTokenMetadata, quicknodeEndpoint, createUmi]
    );

This will create a Umi instance that uses our wallet connected via the wallet adapter, our Quicknode endpoint, and a couple of Metaplex plugins.

Add Minting Logic

Let's update our onClick function to mint an NFT using Umi's transaction builder. Replace the onClick function with the following code, and then we will walk through what is happening:

    const onClick = useCallback(async () => {
        if (!wallet.publicKey) {
            console.log('error', 'Wallet not connected!');
            notify({ type: 'error', message: 'error', description: 'Wallet not connected!' });
            return;
        }

        // Fetch the Candy Machine.
        const candyMachine = await fetchCandyMachine(
            umi,
            candyMachineAddress,
        );
        // Fetch the Candy Guard.
        const candyGuard = await safeFetchCandyGuard(
            umi,
            candyMachine.mintAuthority,
        );
        try {
            // Mint from the Candy Machine.
            const nftMint = generateSigner(umi);
            const transaction = await transactionBuilder()
                .add(setComputeUnitLimit(umi, { units: 800_000 }))
                .add(
                    mintV2(umi, {
                        candyMachine: candyMachine.publicKey,
                        candyGuard: candyGuard?.publicKey,
                        nftMint,
                        collectionMint: candyMachine.collectionMint,
                        collectionUpdateAuthority: candyMachine.authority,
                        mintArgs: {
                            solPayment: some({ destination: treasury }),
                        },
                    })
                );
            const { signature } = await transaction.sendAndConfirm(umi, {
                confirm: { commitment: "confirmed" },
            });
            const txid = bs58.encode(signature);
            console.log('success', `Mint successful! ${txid}`)
            notify({ type: 'success', message: 'Mint successful!', txid });

            getUserSOLBalance(wallet.publicKey, connection);
        } catch (error: any) {
            notify({ type: 'error', message: `Error minting!`, description: error?.message });
            console.log('error', `Mint failed! ${error?.message}`);
        }
    }, [wallet, connection, getUserSOLBalance, umi, candyMachineAddress, treasury]);

Let's walk through what is happening here:

1. First, we check to make sure the wallet is connected. If it is not, we notify the user and return.
2. Next, we fetch the Candy Machine and Candy Guard using the fetchCandyMachine 以及 safeFetchCandyGuard functions from the mpl-candy-machine package. We need these for our minting transaction.
3. Next, we generate a signer using Umi's generateSigner function. This will be used to mint our NFT.
4. Next, we create a transaction using Umi's transactionBuilder function. This will be used to mint our NFT:

• We add a setComputeUnitLimit instruction to the transaction. This safety measure prevents the transaction from failing due to exceeding the compute unit limit.
• We add a mintV2 instruction to the transaction. This is the instruction that will mint our NFT. We pass our umi instance and an object with the following properties:
  • candyMachine: The candy machine's public key.
  • candyGuard: The candy guard's public key.
  • nftMint: The signer we generated earlier.
  • collectionMint: The collection mint's public key.
  • collectionUpdateAuthority: The collection update authority's public key.
  • mintArgs: An object containing the mint arguments associated with your Candy Guard (this may be different depending on your Candy Guard). For the solPayment guard, we must pass the destination of the payment (the treasury's public key).

5. We send the transaction and notify the user of the result. Note that umi returns transaction signatures as a Unit8Array, so we must encode it to base58 before displaying it to the user.
6. Finally, we call getUserSOLBalance (a store action built into the scaffold) to update the user's SOL balance.

Nice job! Our site should now be able to mint NFTs.

Mint an NFT

Now that we have added the minting logic, let's start and test the site. In your terminal, run the following:

yarn dev

这将打开一个浏览器窗口，访问地址为localhost:3000，您可以在该页面连接钱包并铸造 NFT。继续操作前，请确认您的 Phantom 钱包已设置为 devnet 而非主网。

要在 Phantom 钱包中铸造 NFT，您需要在钱包里存有 devnet SOL。您可以通过 Solana CLI 向您的 Phantom 钱包空投，方法是在终端中输入以下命令：

Solana 空投 1 您的_Phantom_钱包地址

准备就绪后，点击“Mint”。如果操作成功，您应该会看到一个类似这样的网站：

If you see an error that says “Mint Failed,” you might not have enough funds. Try again once you have added funds. You can view the NFT in your wallet after purchasing. Phantom may take a moment before rendering the NFT in your wallet. Ours looks like this:

这糖真甜啊！干得不错。

结论

Congrats! You created a Candy Machine using Metaplex Sugar and Umi. You now have all the tools needed to run your own NFT mint. We're excited to see what NFTs you're creating! Join us on Discord or reach out to us via Twitter to share your NFT project.

我们 ❤️ 您的反馈！

如果您有任何反馈或对新主题的建议，请告诉我们。我们非常期待您的来信。
