Overview

Azure Blob Storage destination allows you to store your QuickNode Streams data directly in Microsoft Azure's cloud storage. This destination is ideal for data warehousing, analytics, and long-term storage of blockchain data.

Prerequisites

Before setting up Azure as a destination, ensure you have:

• A Microsoft Azure account
• An Azure Storage Account
• A Storage Container created
• A Shared Access Signature (SAS) token with appropriate permissions

Azure Configuration

Required Azure Resources

1. Storage Account: Your Azure storage account where blobs will be stored
2. Container: A blob container within your storage account
3. SAS Token: A Shared Access Signature token with read/write permissions

Creating Azure Resources

1. Create Storage Account

1. Log into the Azure Portal
2. Click Create a resource
3. Search for Storage account and select it
4. Fill in the required details:
   • Subscription: Select your subscription
   • Resource group: Create or select existing
   • Storage account name: Choose a unique name
   • Location: Select your preferred region
   • Performance: Standard (recommended)
   • Redundancy: LRS (Locally-redundant storage) or your preferred option
5. Click Review + create and then Create

2. Create Container

1. Navigate to your storage account
2. In the left menu, click Containers
3. Click + Container
4. Enter a container name (e.g., blockchain-data)
5. Set Public access level to Private
6. Click Create

3. Generate SAS Token

1. In your storage account, click Shared access signature
2. Configure the following settings:
   • Allowed services: Blob
   • Allowed resource types: Container, Object
   • Allowed permissions: Read, Write, Create, Delete
   • Start time: Current time
   • Expiry time: Set appropriate expiration (consider security implications)
3. Click Generate SAS and connection string
4. Copy the SAS token (the part after the ? in the connection string)

Stream Configuration

Destination Attributes

When configuring your stream with Azure destination, you'll need to provide the following attributes:

Attribute	Type	Required	Description
storage_account	string	Yes	Your Azure storage account name
container	string	Yes	The container name where blobs will be stored
sas_token	string	Yes	Your Shared Access Signature token
blob_prefix	string	No	Prefix for blob names (e.g., prefix/)
file_compression_type	string	Yes	Compression type for files
file_type	string	Yes	File format (.json)
max_retry	number	Yes	Maximum number of retry attempts
retry_interval_sec	number	Yes	Interval between retries in seconds

File Configuration Options

File Types

• .json: Human-readable JSON format, good for development and debugging

Compression Types

Choose the compression type that best fits your use case:

• None: No compression, fastest processing
• Gzip: Good compression ratio, widely supported

Setup Guide

Step 1: Create Your Stream

On your QuickNode dashboard, navigate to the Streams page by clicking the Streams tab on the left side-panel. After, click the Create Stream button in the top-right corner. You'll be prompted to first configure your Stream settings:

1. Basic Configuration:

   • Stream Name: Choose a descriptive name
   • Network: Select your target blockchain network

2. Dataset Configuration:

   • Dataset: Choose the data type you want to stream
   • Batch messages: Configure how many records to process per batch
   • Modify the stream payload: (Optional) Write JavaScript code to filter/transform your data before delivery

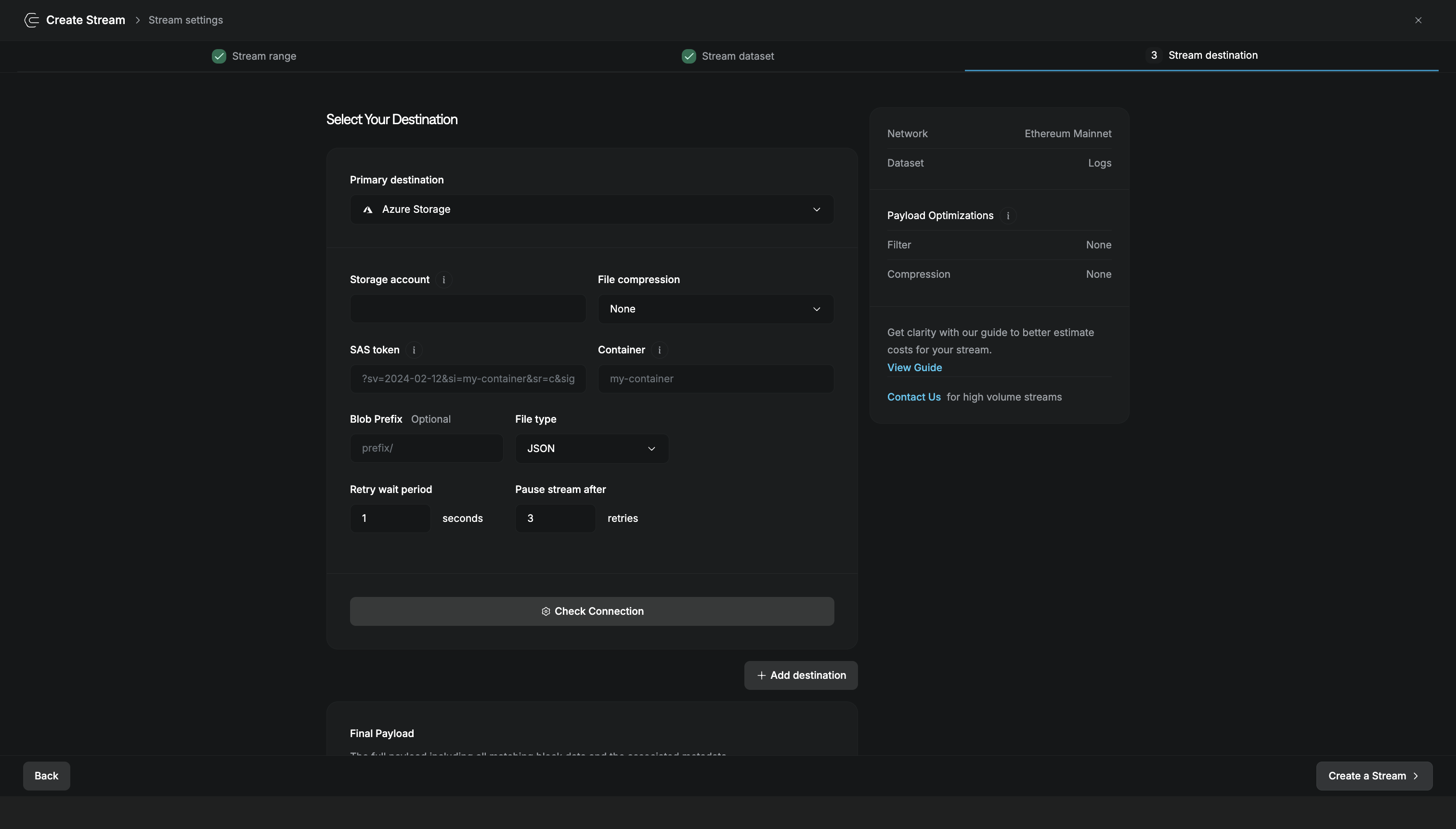

3. Destination Configuration:

   • Destination Type: Select Azure
   • Storage account: Enter your Azure storage account name
   • File compression: Select compression type
   • SAS token: Paste your SAS token
   • Container: Enter your container name
   • Blob prefix: Set your desired prefix (e.g., prefix/)
   • Retry wait period: Set retry delay in seconds (default: 1)
   • Pause stream after: Set retry attempts (default: 3)

Step 2: Activate Your Stream

Review your configuration and click Create Stream. Your stream will begin processing data and storing it in Azure Blob Storage.

Example Configuration

JSON Configuration Example

{
  "name": "Ethereum Block Stream",
  "network": "ethereum-mainnet",
  "dataset": "block",
  "destination": "azure",
  "destination_attributes": {
    "storage_account": "myblockchainstorage",
    "container": "ethereum-data",
    "sas_token": "sv=2020-08-04&ss=b&srt=sco&sp=rwdlacupitx&se=2024-01-01T00:00:00Z&st=2023-01-01T00:00:00Z&spr=https&sig=...",
    "blob_prefix": "ethereum/mainnet/blocks/",
    "file_compression_type": "gzip",
    "file_type": ".json",
    "max_retry": 3,
    "retry_interval_sec": 2
  },
  "dataset_batch_size": 100,
  "elastic_batch_enabled": true,
  "include_stream_metadata": "body",
  "status": "active"
}
